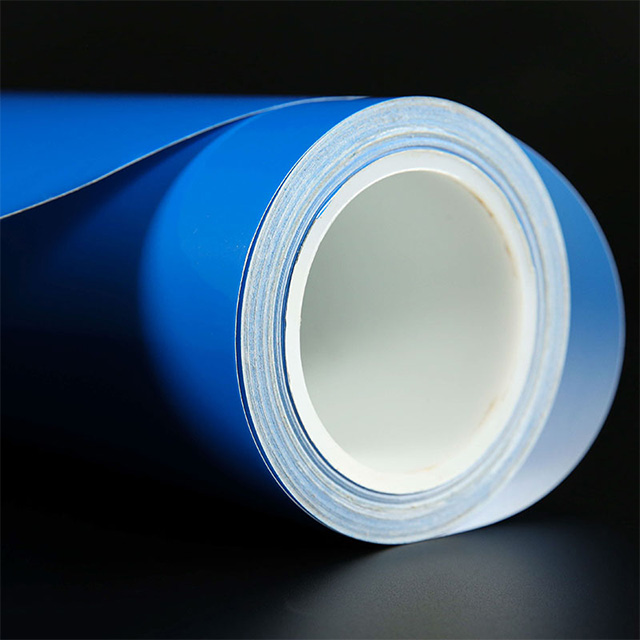

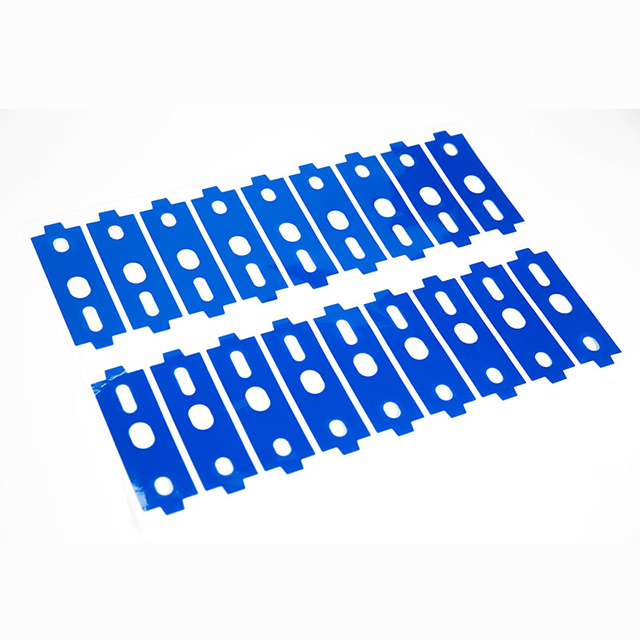

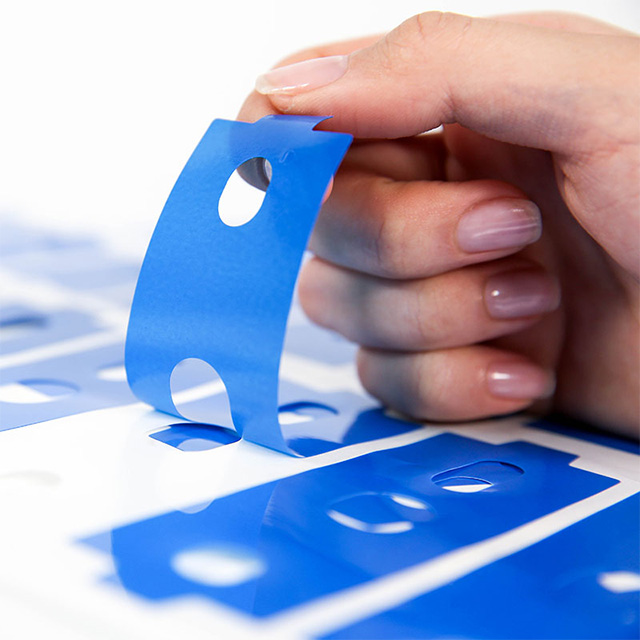

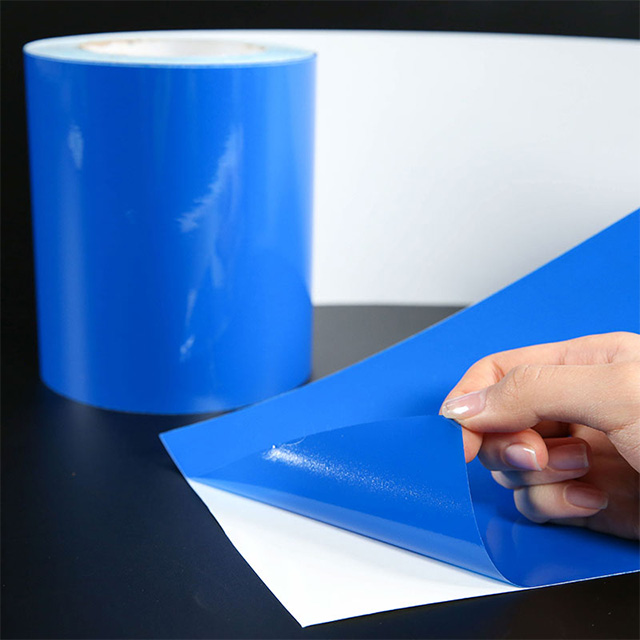

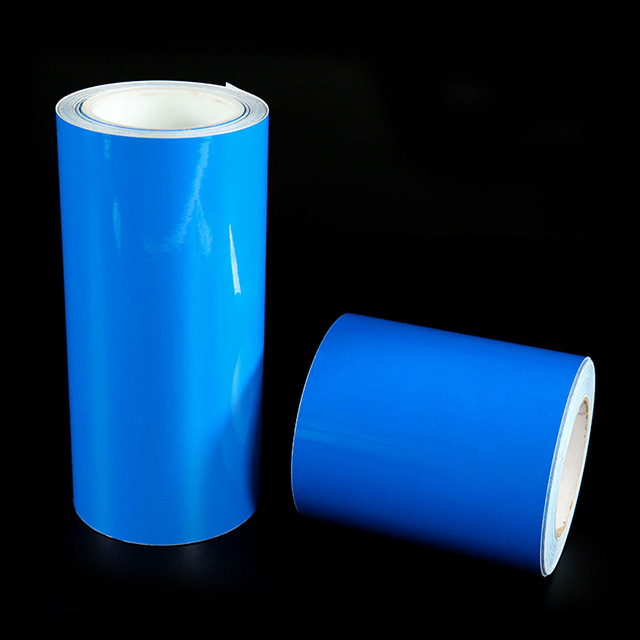

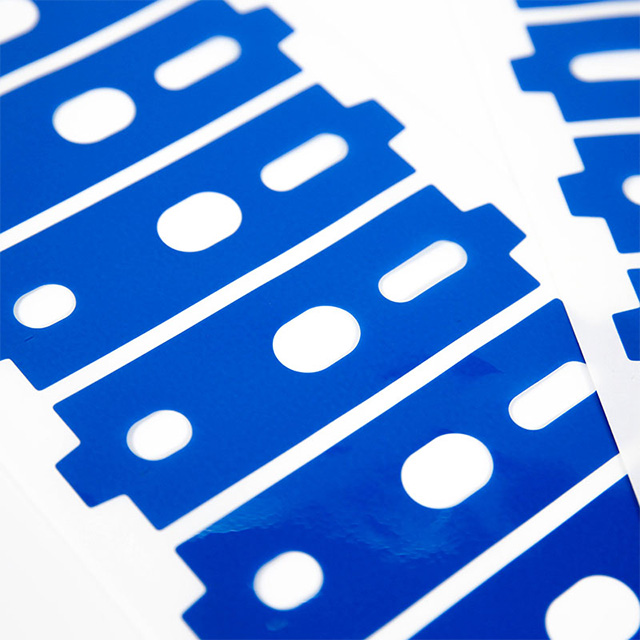

Special blue film for power battery protection

The special blue film for power battery is coated with pet substrate + corresponding functional adhesives, such as flame retardant, acid and alkali resistance, high temperature resistance, etc. This series of tapes are mainly used in different parts of lithium battery, playing the functions of insulation, fixation, etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Series: Special blue film for power battery protection

Brief Desicription:

The series is widly used in Power Module, Cylindrical Lithium Batteries, Consumer Electronics Batteries. Also there are various tapes including YEEJYUN brand and some well-known brands, which are used in different scenarios.

Brand: YEEJYUN

Materials: PET, PP, PC, PI, etc.

Thickness: 25um-150um

Color: Clear, White, Black, Blue, Brown, Green etc.

Dimensions: Can be customized.

Usage:

It is composed of PET substrate coated with acrylic adhesive layer, and plays the role of appearance protection and insulation in pack assembly.

Features:

1.Customizable width

2.Withstand voltage leakage current< 3mA, 5000DC

3.Insulation resistance≥ 200MΩ, 10000DC, 60s

4.Flame retardant grade: UL94-HB
